Outliner

The Outliner displays all the objects you've created. Within the Outliner, you can organize objects, group them, toggle their states, and configure materials.

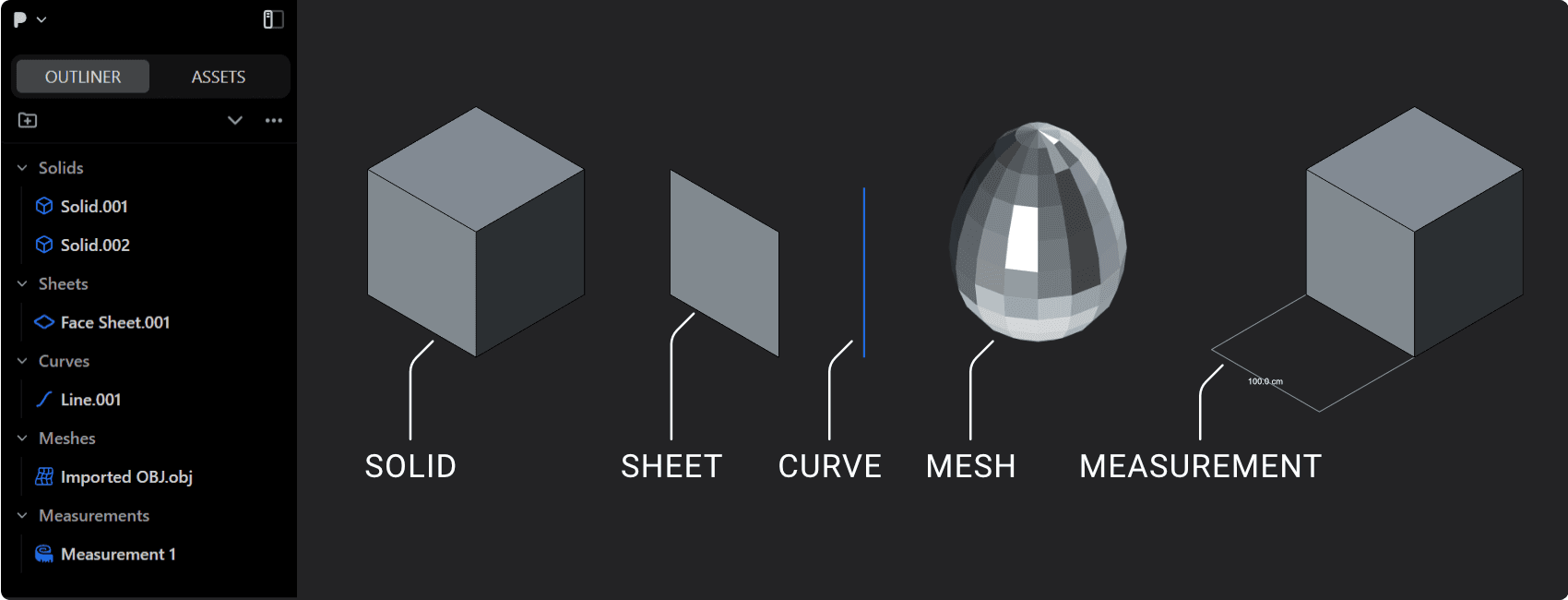

Displayed Objects

• The objects you create are classified into different sections: "Solids," "Sheets," "Curves," "Meshes," "Images", "Measurements", and "Instances."

Displayed Construction Planes

• Saved construction planes are classified into "Planes" and are listed in the "Added Planes" menu in the right side of the screen.

Organize Objects

• Right-click on a section label ("Solids," "Sheets," "Curves," "Meshes," "Images", "Instances", and "Measurements") and choose "Select all" to select all objects within that section.
• You can reorganize the Outliner by dragging and dropping objects.

Group Objects

Grouping allows you to better organize your objects.

Operation	Shortcut	Command Name
Create a group and move the selected object to the new group.	Ctrl + G or	Group Selected
Remove the selected object from the group.	Alt + G	Ungroup Selected
Duplicate a selected group and its recursive content.	Shift + D	Duplicate

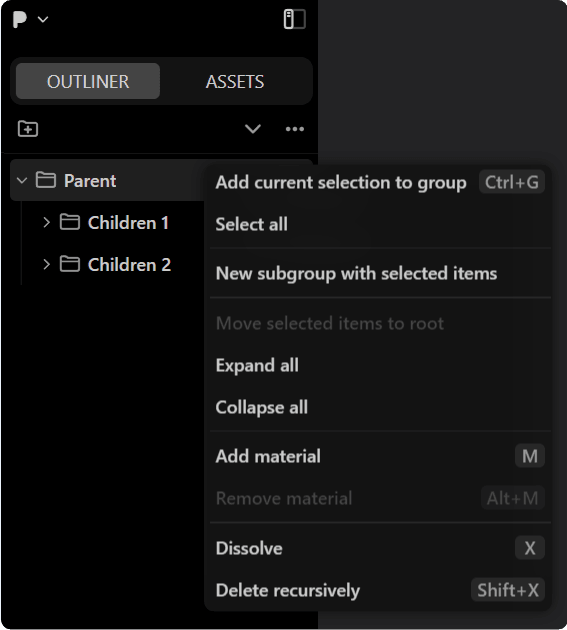

Right-click on a group folder to access related commands.

Alt-click on folder in outliner to select all objects in that section.

Collapse and Expand Groups

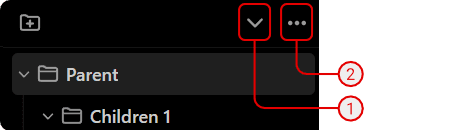

• To collapse all groups, either click (1) or hover your cursor over the Outliner and press C.
• To expand all groups, click (2) and select "Expand all" from the dropdown menu.

Rename Objects

• To rename an object, double-click on its name.
• To rename multiple objects at once, hold down the Shift key while selecting them, and then, while still holding Shift, double-click on one of their names.

Locate Objects in the Outliner

To bring a selected object to the top of the Outliner

• Select object in the 3D viewport, hover your cursor over the Outliner, and press /.
• Alternatively, select the object and click (2) and choose "Scroll to selection."

To isolate a selected object in the Outliner

• Select the object in the Outliner and press .. This will collapse all groups and sections except for the one containing your selected object.
• Alternatively, select the object and click (2) and choose "Isolate selection."

Toggle Object States

You can toggle the states of objects or groups, such as making them temporarily hidden or visible, disabled or enabled, and locked or unlocked.

Operations in the Outliner

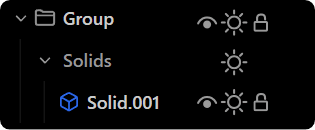

Click on the icons next to objects or groups to change their states. You can also change states in bulk by selecting multiple objects.

• : Toggle hide
• : Toggle disable
• : Toggle lock

Operations by shortcut

You can also use shortcuts to change the states of objects or groups.

Operations by Command Name

You can also use commands to change the states of objects or groups.

Material Color

You can assign materials to Solids, Sheets, and Curves. Any material set on a group is automatically applied to every object within that group.

For more details on working with materials, see Set Material and Remove Material.

In the Outliner you can:

• View each object's material color as a colored dot.
• Copy a material's color by dragging its dot onto another dot.
• Set material colors for entire groups, with the same drag and drop copying method.
• Right click an object to open a menu for setting, removing, or forking its material.
• Select multiple objects and apply or clear materials in bulk.
• Assign a material directly by dragging a color dot onto the object in the 3D viewport.

Toggle Sidebar Visibility

Toggle the visibility of the outliner and window's right sides.

Operation	Shortcut	Command Name
Toggle the display of the left sidebar.	Ctrl + B or to the right of the P-Menu	Sidebar: toggle left
Toggle the display of the right sidebar.	Ctrl + Shift + B or to the left above View Mode	Sidebar: toggle right
